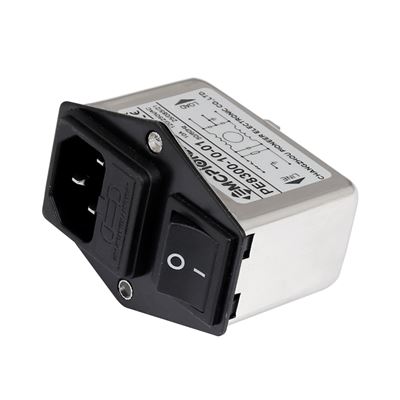

Power Entry Modules Filters with Fuse Holder
and on/off Switch
Single fuse holder
Rated Current: 1A～10A
Application:
Single-phase power supplies,switch-mode power supplies,
Small to medium-sized machines and household equipment,
Protable electrical and electronic equipment,
Test and measurement equipment
Medical equipment etc
Specification:
| Rated voltage | 120/250VDC |
| Rated current | 1A～10A |
| Operating frequency | 50/60Hz |
| Temperature Range | HPF25/085/21 |
| Test voltage(1min) | Line to Line 1450VDC |
| Line to Ground 2000VAC |
Electrical Schematic:
Filter Selection Table:
| Filter | Rated Current(A) | Rated Voltage(V) | Leakage Current(mA) | Input/Output Connections |
| PE8300-1-01 | 1 | 120/250 | 0.5 | Faston |
| PE8300-3-01 | 3 | 120/250 | 0.5 | Faston |
| PE8300-6-01 | 6 | 120/250 | 0.5 | Faston |
| PE8300-10-01 | 10 | 120/250 | 0.5 | Faston |
| PE8400-1-01 | 1 | 120/250 | 0.5 | Faston |
| PE8400-3-01 | 3 | 120/250 | 0.5 | Faston |
| PE8400-6-01 | 6 | 120/250 | 0.5 | Faston |
| PE8400-10-01 | 10 | 120/250 | 0.5 | Faston |
